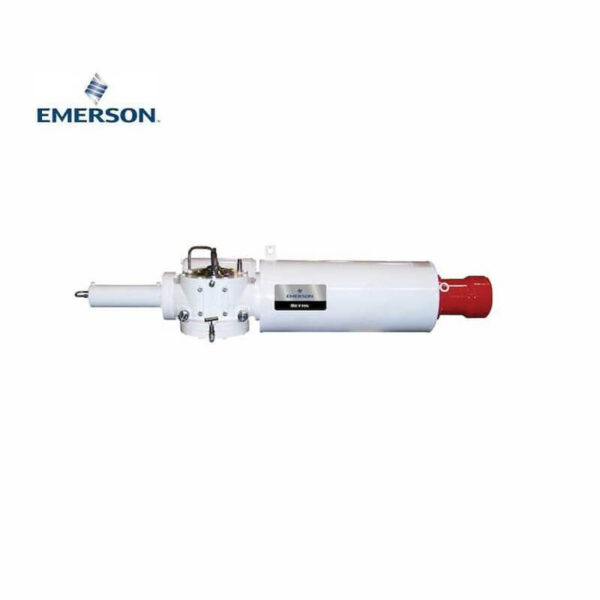

Bettis GS-Series Scotch Yoke Hydraulic Valve Actuator
Specs
Power Source
Hydraulic
Product Type
Hydraulic Actuator
Actuation
Double-acting
Certifications
Enclosure Sealed( specific IP rating available upon request)
RoHS Statement
This product is only intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).
Control Type
On/Off, ESD
Valve Type
Ball, butterfly, and plug valves, louvers and dampers, and other quarter-turn mechanisms
Operating Temperature
Standard -40°C to + 66°C (-40°F to +150°F)
Torque/Thrust
Double-acting models: 1420 to 678,000 Nm (12,581 – 6,000,000 in-lbs)
Operating Pressure
Up to 40-220 psig (3-14 bar)
A hydraulic, scotch yoke, actuator that is well suited for splash zone, riser and other offshore failsafe applications.
They are available with diver or ROV intervention systems.
