• size range: 1/2”-12”, DN15- DN300
• pressure rating: Class150- Class600, PN16-PN100
• cast steel body material: WCB, CF8, CF8M, CF3, CF3M
• forged steel body material: A105, LF2, F304, F316
• seat: PTFE, RPTFE, TMF1600 PEEK, NYLON, DEVLON, MO- LON
• Applicable temperature: -60°C to 260°C
• Operation: Handle, handwheel, turbine box, electric head, pneumatic head
Ball Valves with trunnions help maintain consistent flow rates for high capacity, heavy-duty applica- tions. They have a rotatable ball with a cylindrical flow passage through the center to the con- trol flow. When the ball is turned one-quarter of the way, the flow stops. The port of a full-port or full- bore ball valve equals the pipeline diameter and presents little or no restriction to flow to allow for pig- ging when not attenuated.
• Size range: 2”-24”, DN50-DN600
• Pressure rating: Class150- Class2500, PN16-PN420
• Body structure: Two-piece, three-piece casting steel body material: WCB, CF8, CF8M, CF3 , CF3M, two-way stainless steel, Inconel forged body ma-
terial: A105, LF2, F304, F316 , F51, two-way stainless steel, Inconel
• temperature: -46 °C to 800 °C
• operation : Handle, handwheel, turbine box, electric head, pneu- matic head
Double Female Ball Valve
(Complies with MSS-SP110-92)
200 lbs. WSP at 406 ° Max
400 lbs. WOG
100% Pressure Tested
Threaded Ends
Blowout Proof Stem
1/4” – 1/2” Full Flow
3/4” – 2” Large Port Diameters
CRN OCO7135.2C
200 lbs. WSP at 406 ° Max
400 lbs. WOG
100% Pressure Tested
Blow-Out Proof Stem
1/4” – 1/2” Full Flow
3/4” – 2” Large Port Diameters
CRN OCO7135.2C
*Contains lead. Ball valve not for use in water systems intended for human consumption*
200 lbs. WSP at 406 F Max
400 lbs. WOG
100% Pressure Tested
Blow-Out Proof Stem
Stainless Steel Ball
1/4″ – 1/2″ Full Flow
3/4″ – 2″ Large Port Diameters
CRN OCO7135.2C.
2- pc Ball valve investment casting for body and cap full bore threated end: ANSI B2.1, BC21, ISO 7/1 pressure rating: 1000PSI (PN63) Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB Lock device can be chosen.
1- pc Ball valve investment casting for body and cap Reduce bore threated ends: ANSI B2.1, BS21, ISO 7/1 pressure rating: 1000PSI (PN63) Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB
2-PC BALL VALVE(DIN Length) investment casting for body and cap full bore threated end: ANSI B2.1, BC21, ISO 7/1 Length: DIN3202-M3 pressure rating: 1000PSI (PN63) Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB

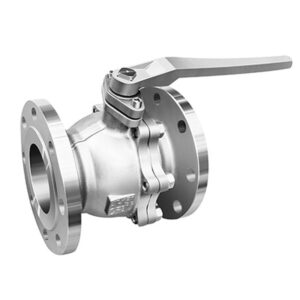

2-PC FLange Ball Valve investment casting for body and cap full bore flanged ends: ANSI B16.5, Face fo Face: ANSI B16.10 Pressure rating: 150LB, 300LB, 600LB Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB
3-PC Ball Valve investment casting for body and cap full bore Threated ends: ANSI B2.1, BS21, ISO7/1 Pressure rating: 1000PSI (PN63), Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB
3-Way Ball Valve with Mounting Pad (“L”Type) investment casting for body and cap Reduce bore, “bore”, (“L”Type) Threated: ANSI B2.1, BS21, ISO7/1 Mounting Pad: ISO5211 Pressure rating: PN63(1000PSI), Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB
3-PC Ball Valve with Mounting Pad investment casting for body and cap Fire- safe design full bore Threated: ANSI B2.1, BS21, ISO7/1 Length: DIN 3202-M3 Mounting Pad: ISO5211 Pressure rating: PN125(2000PSI), Working temperature: -25C + 180C Material: CF8M, CF8, CF3M, WCB
• Size Range: DN50-DN600, 2”-24”
• Pressure Rating: PN16- PN100, Class150-Class600
• Body Material: A105, A350 LF2, A182 F304, A182 F316, WCB, CF8, CF8M metal
• seat: Stellite , tungsten car- bide, nitriding soft seal seat: PTFE, RPTFE, PEEK, NYLON
• Applicable temperature: -46°C to 427°C
Segmented Ball Valves provide high capacity, precise control across a broad range of appli- cations. They are similar to a conventional ball valve, but with a contoured V-notch segment in the ball. This control valve has good rangeability, control, and shutoff capability. The V-notch ball provides positive shearing action and produces an inherent equal percentage flow character- istic.
Severe Service Ball Valves have a simplistic, two-piece floating ball design with integral met- al seat meant to provide tight shutoff in high temperature, high pressure, and erosive appli- cations across all industries.
